| Controller | Curtis 400A controller |
| Battery | Maintenance-free 48v 150AH lead acid/48v/72V 105AH lithium |
| Motor | KDS AC 5KW/6.3KW motor |
| Charger | Charger: AC100-240V charger |
| Front Windshield | DOT certified flip windshield |
| Roof | Injection molded roof |

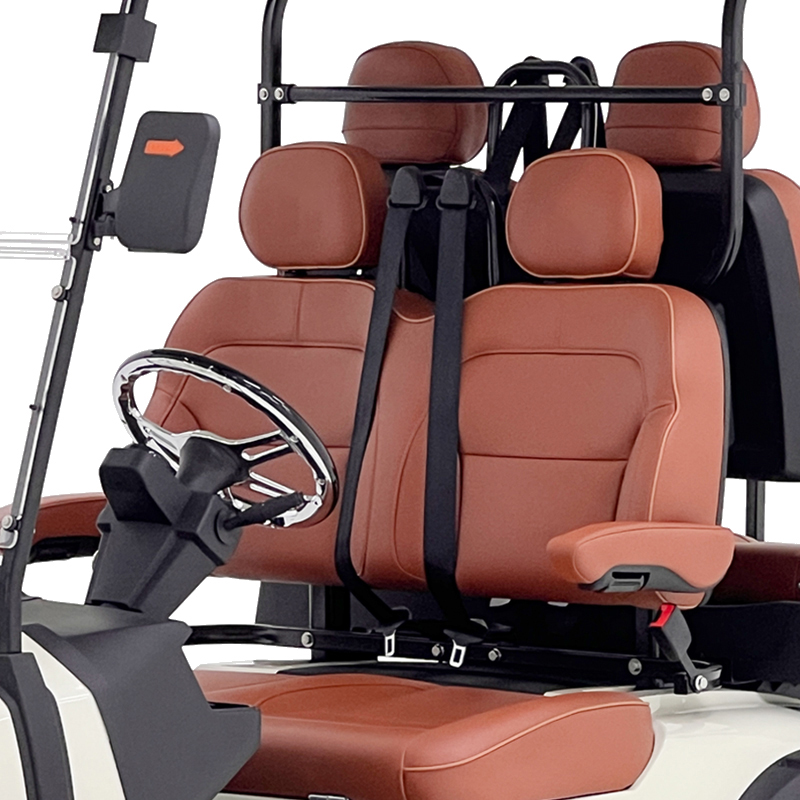

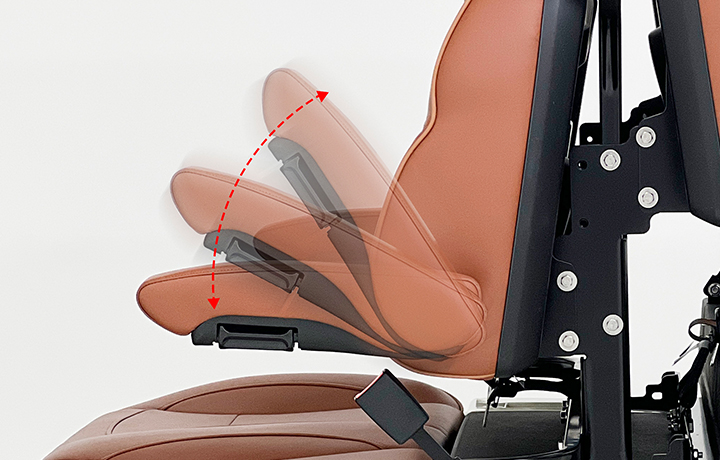

| Seat | Luxury seats |
| Chassis&Frame | Carbon steel |
| Body | Injection Molding of PP for Automobile |
| Two-point winding seat belt | DOT |
| Rearview mirror | Manually adjustable,foldable rearview mirrors left and right with turn signal light |

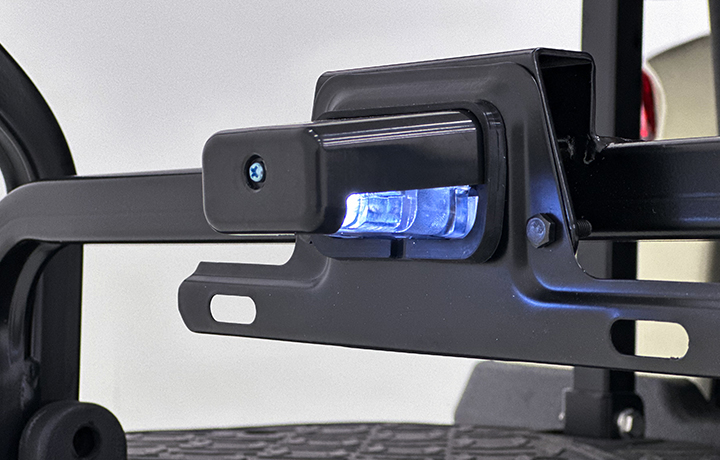

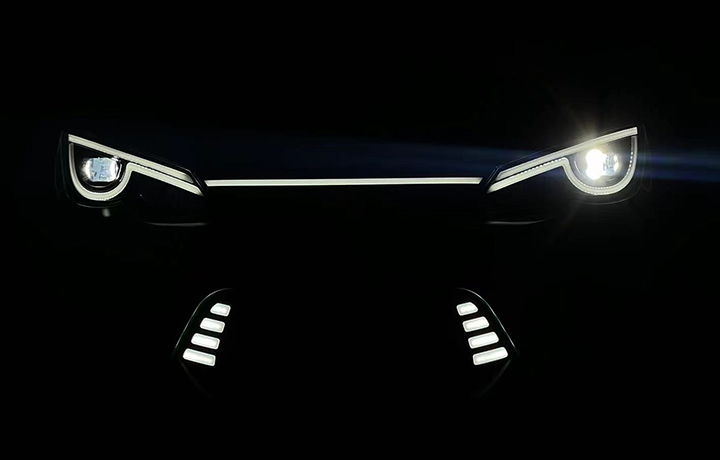

| Lighting and signals | LED headlamp:(near light,far light,steering light,clearance lamps) LED tail lamp:(brake light,position light,steering light) snail horn,reversing buzzer |
| Dashboard | 10.1 inches touch screen,Iphone carplay Bluetooth,Speakers |
| Direction System | Bidirectional rack and pinion steering system |
| Braking Systems | Hydraulic four-wheel disc brake |
| Parking | Electromagnetic parking |
| Front Suspension Syetem | Macphersan Independent suspension
with aluminum alloy pedal |
| Rear Suspension System | Integrated trailing arm rear axle
spring+cylinder hydraulic damping |
| Tyre | DOT off road tires |
| Contour dimension(mm) | 3700*1200*1900 | Vehicle weight (kg) | 500-600(including
batteries) |
| Passenger dimension(mm) | 6 | Fuel Type | Electric |
| Maximum speed(km/h) | 25km/h | Charge Time(h) | 7-9h |
| Driving range(km) | 70-90 | Minimum ground
clearance(mm) | 200 |
| Maximum grade (full load) | 20°-25° | Braking
distance(m) | <6 |
| Standing Postion of Tail Caddie | Equipped | Minimum turning radiuse(m) | <3.5 |
Product Overview
Its vibrant cyan finish not only adds a cheerful, recognizable presence to residential streets but also resists fading under prolonged sun exposure, maintaining its appeal for years. The 4+2 seating configuration (4 front-facing seats + 2 rear-facing jump seats) comfortably accommodates up to 6 passengers, making it ideal for family outings to community parks, neighborhood block parties, or daily tasks. Designed exclusively for suburban environments, this cart balances a neighborhood-safe speed with enhanced safety features to ensure harmonious coexistence with pedestrians, cyclists, and other low-speed vehicles.
Features
Community-Safe Design: Strictly complies with § 74.21 low-speed vehicle safety standards, including brakes that stop within 50 feet at 25 mph, a 200-foot audible horn (adjustable volume for residential quiet hours), and LED daytime running lights for increased visibility.
Smart Braking System: Equipped with DALY’s collaborative braking module that coordinates front and rear brake force to prevent wheel lock during hill descents—critical for suburban areas with sloped streets—eliminating tipping risks and ensuring stable stops even with a full passenger load.
Quiet Operation: Noise-reduced motor compartment (≤60dB at 15mph) and sound-absorbing interior panels, making it ideal for early-morning trips to community gardens or late-evening returns from neighborhood events without disturbing residents.
UV-Resistant Finish: Permashield coating with a 10-year warranty against fading, graffiti damage, and minor scratches—perfect for carts left outdoors in suburban driveways or community parking lots.
Practical Storage: Integrated under-seat storage compartments (20L capacity each) for stowing groceries, backpacks, or sports equipment, plus a rear cargo rack (100-lb capacity) for larger items like strollers or coolers.
Applications
Ideal for planned communities (such as gated villa areas or eco-residential parks), retirement villages (assisting elderly residents with short-distance travel to community centers, medical clinics, or dining halls), university campuses (shuttling students between dormitories, libraries, and campus stores), and residential complexes (providing free shuttle services for residents to nearby public transit stops or shopping plazas).
Why Choose Us
Our neighborhood carts feature intelligent BMS technology that not only optimizes battery performance and prevents overcharging but also provides real-time battery health updates via a mobile app—helping property managers plan maintenance proactively. The aircraft-grade aluminum frame reduces weight by 15% compared to steel-frame alternatives, improving energy efficiency while resisting corrosion from rain or de-icing salts. Additionally, the lithium-ion battery delivers 3,000+ charge cycles (6x longer than lead-acid batteries), cutting long-term replacement costs by up to 70%. We also offer custom branding options (e.g., community logos on side panels) and 24/7 technical support with local service centers for quick repairs.
